Fliegl DFA duplex mixer

 40 years of concrete mixing technology made by Fliegl

Fliegl Bau- und Kommunaltechnik GmbH in Mühldorf offers robust mobile and stationary duplex mixers in all shapes and sizes. The "Mix Master Duplex" mixers impress with their extremely low wear when compared to conventional mixing systems – be it when preparing concrete, mortar and screed or processing gravel, sand, chippings, cement, soil, seed etc. Even earth-moist or rough, coarse-grained materials are mixed thoroughly and effectively in a very short time.

Media & download

Watch video
Image gallery

The main benefits of the Mix Master Duplex DFA at a glance

  • Automatic filling – filling of the mixer with the hydraulically folding filling bucket:
    Simply drive into the pile of gravel, rubble, etc., close the bucket and add the auxiliary components

  • Much higher hourly output

  • Easy to clean

  • Mixing while driving

  • Rapid mixing, even of earth-moist material

  • Trouble-free mixing process – significantly lower wear even with recycling material and coarse-grained substances

  • With forklift mounting

  • Capacity from 300 to 1,400 l

  • Used across the globe for decades

  • Spreading of mix at any height

  • Rapid emptying It is driven via chute

  • More cost-effective since no second person required

Any questions?

Tel.: +49 (0)8631 307-382
Fax: +49 (0)8631 307-553
E-mail: baukom@fliegl.com

Filling the mixer with the hydraulically folding filling bucket

Benefits of the Fliegl duplex mixer compared to screw mixers

Fliegl duplex mixer

  • Approx. 80-90% less wear

  • Much shorter mixing times – approx. 75% time saving

  • Approx. 60% lower oil consumption on hydraulic drive motor

  • Wheel loader operation with low speed

  • Reduced fuel consumption and wear on wheel loader

  • Easy cleaning

  • Mixing of recycling and coarse-grained materials possible

Screw mixer

  • Very high wear on mixing auger and bucket walls caused by rock

  • Poor mixing quality despite long mixing times

  • Extremely high oil consumption

  • Wheel loader operation with very high speed

  • Very high fuel consumption and wear on wheel loader

  • Difficult to clean

  • Generally not possible

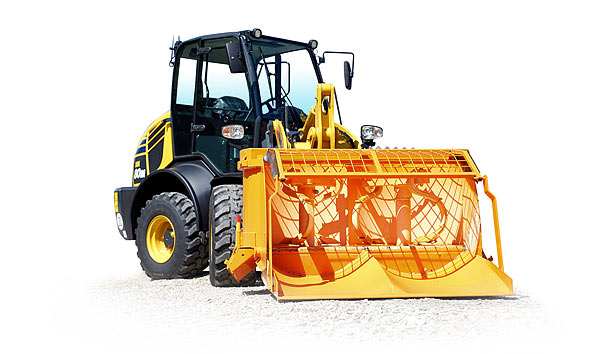

The mobile Mix Master Duplex DFA

Can be attached to wheel loaders, forklifts, excavators and telescopic loaders.

Using the hydraulic filling bucket, you can fill the mixer yourself by driving into the rubble, gravel or sand pile or other mixing components.

Binders such as water and cement are added after closing the filling bucket. Mixing can take place while travelling to the point of use.

Depending on local conditions, the concrete can be emptied to the side via the discharge chutes on the left and right.

Using a wheel loader, for example, the mix can also be emptied onto a truck bed or trailer via the hydraulically folding filling bucket.

Mix Master Duplex DFA

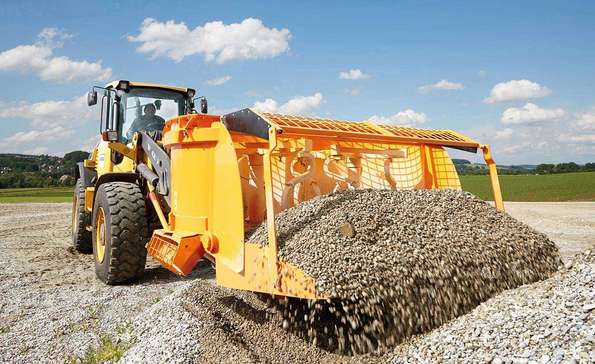

Filling the mixer with the hydraulically folding filling bucket:
Simply drive into the pile of gravel, rubble, etc., close the bucket and add the auxiliary components.

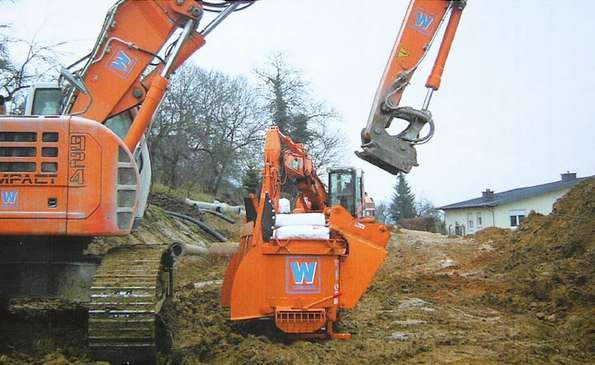

Einsatz auch bei Bodenverflüssigung im Deponie- und Kanalbau – Anbau am Bagger.

Flexible application – easy and practical operation

Forklift attachment for all duplex mixers DFA 300 - 600 (series)
Base console without wheel loader mount DFA 300 - 600 (optional)
Wheel loader bracket according to drawing for make ... DFA 300 - 600 (optional)
Forklift adapter DFA 1000 - 1400 (series)
Wheel loader console without wheel loader mount DFA 1000 - 1400 (series)
Wheel loader bracket according to drawing for make ... DFA 1000 - 1400 (optional)
The ejection openings available on the left and right ...
... can be operated using a lever function
Hydraulic slide opening, left direction of travel (optional)
Pressure relief valve (optional)

MIX MASTER DUPLEX DFA


Mix Master Duplex DFA       300 DFA 400 DFA 600 DFA 1000 DFA 1400 DFA
Container volume     approx. l 600 750 1100 1450 2000
Max. capacity / usable volume*     l 300 400 600 1,000 1,400
Width     approx. m 1.4 1.6 1.9 2.3 2.7
Mixing container Ø     mm approx. 2 x 800 2 x 900 2 x 1100 2 x 1250 2 x 1500
Weight     kg approx. 700 740 1,150 1,640 1,980
Required oil volume     l/min ONLY 30 ONLY 30 ONLY 38 ONLY 38 ONLY 45 ONLY 45 ONLY 65 ONLY 65 ONLY 90 ONLY 90
Electr. changeover valve ==> 1 x DA sufficient       Standard/12 V Standard/12 V Standard/12 V Standard/24V Standard/24V
Max. operating pressure     bar 180 180 180 180 180
Pressure relief valve       Optional Optional Optional Optional Optional
Min. lifting force     t 1.4 1.8 2.6 4 5.5
Wheel loader service weight     t Up to 4.5 Up to 5.6 From 5.7 From 8.5 From 11
Forklift mounting       Standard Standard Standard Standard Standard
Bolted wheel loader mounting       Optional Optional Optional - -
Welded wheel loader mounting       - - - Optional Optional
Unloading via discharge chutes on either side       Standard Standard Standard Standard Standard
Unloading to the front       Standard Standard Standard Standard Standard
Drive       Chain drive   Heavy transfer case
